Krei Tulum

Tulum, México · 2020 · 160 m²

MKD Studio
Diseño
Marco Kancab Díaz, Roberto Martín Avilés
Equipo
Marco Kancab Díaz, Roberto Martín Avilés, Fernanda Ordaz, Mayuli Ascencio, Iván Gómez Tagle, Wilberth Jiménez, Martha Ramírez
Ingeniería
Ing. Carlos Solís
Obra
LDX
Cliente
Krei Concept Store
Fotografía
Manolo Solís

Krei Concept Store es la primera tienda mexicana en presentar una curaduría fresca de marcas internacionales de lujo, junto con diseñadores latinoamericanos únicos y moda sostenible.

El concepto para esta tienda ubicada en Tulum se basó en una retícula en planta, sencilla, clara y directa, generada mediante círculos de 2.50 metros de diámetro que se tocan en sus tangentes. Esta retícula sigue la misma distribución que una serie de columnas estructurales metálicas que fueron calculadas para soportar la losa de planta alta.

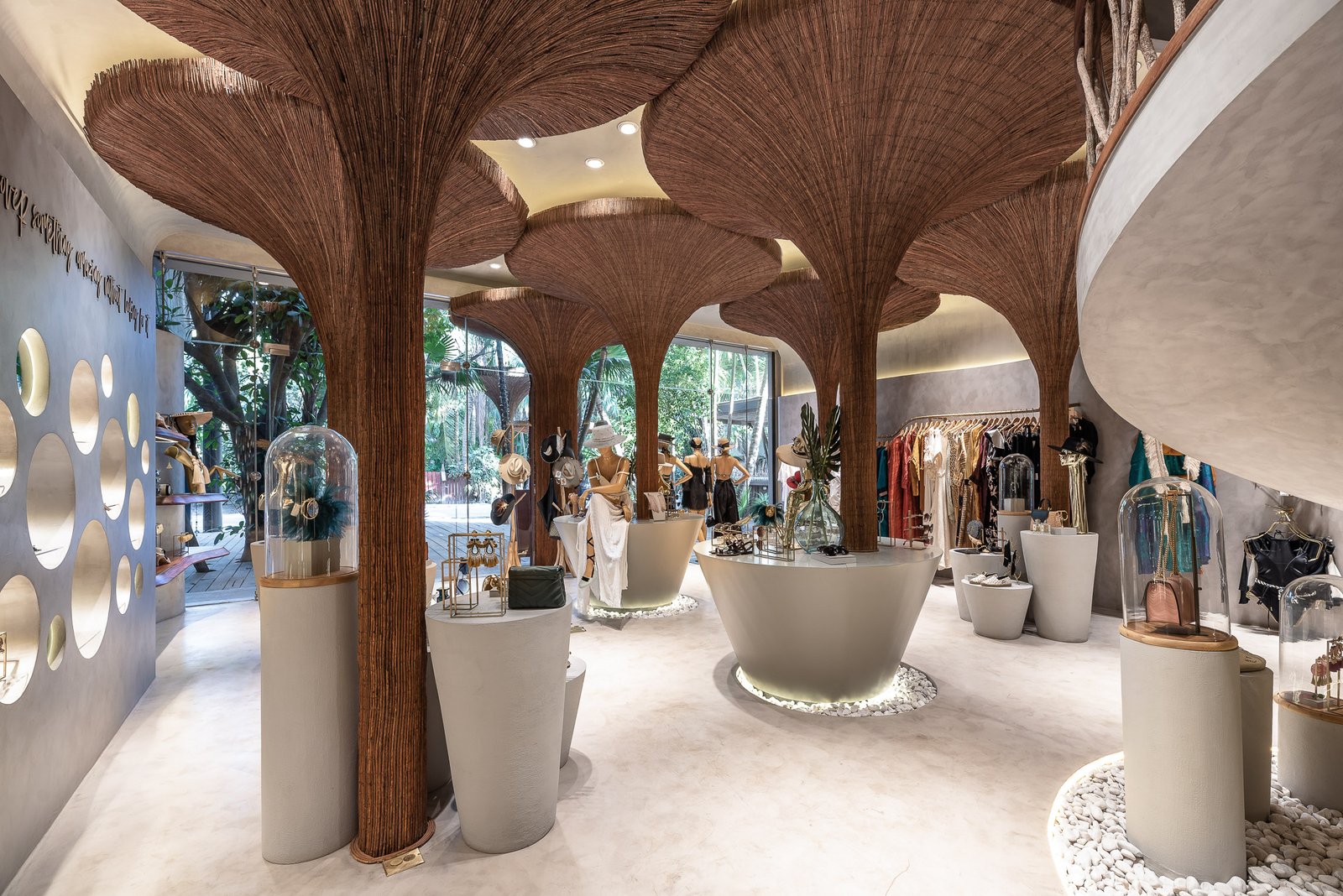

Al estar en un contexto de vegetación exuberante como Tulum, se diseñó un elemento geométrico en base a arcos, que en su imagen figurativa asemeja a una seta u hongo gigante. Estas estructuras geométricas en forma de setas gigantes son el hilo conductor de toda la tienda y buscan evocar una especie de bosque alrededor del cual se va distribuyendo la exhibición en paredes y en mobiliario suelto. Estas estructuras fueron fabricadas por artesanos locales, aprovechando materiales naturales de la zona.

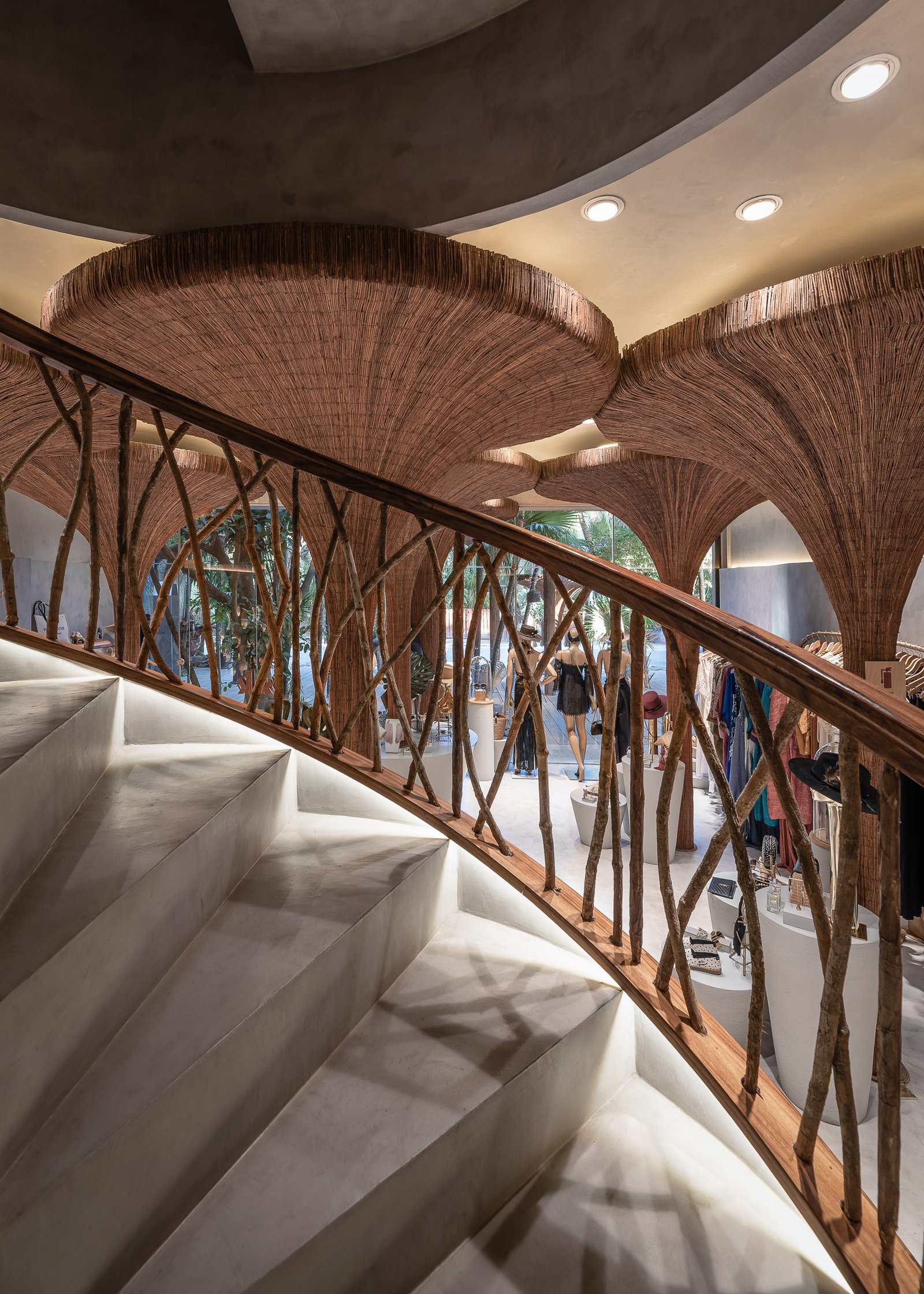

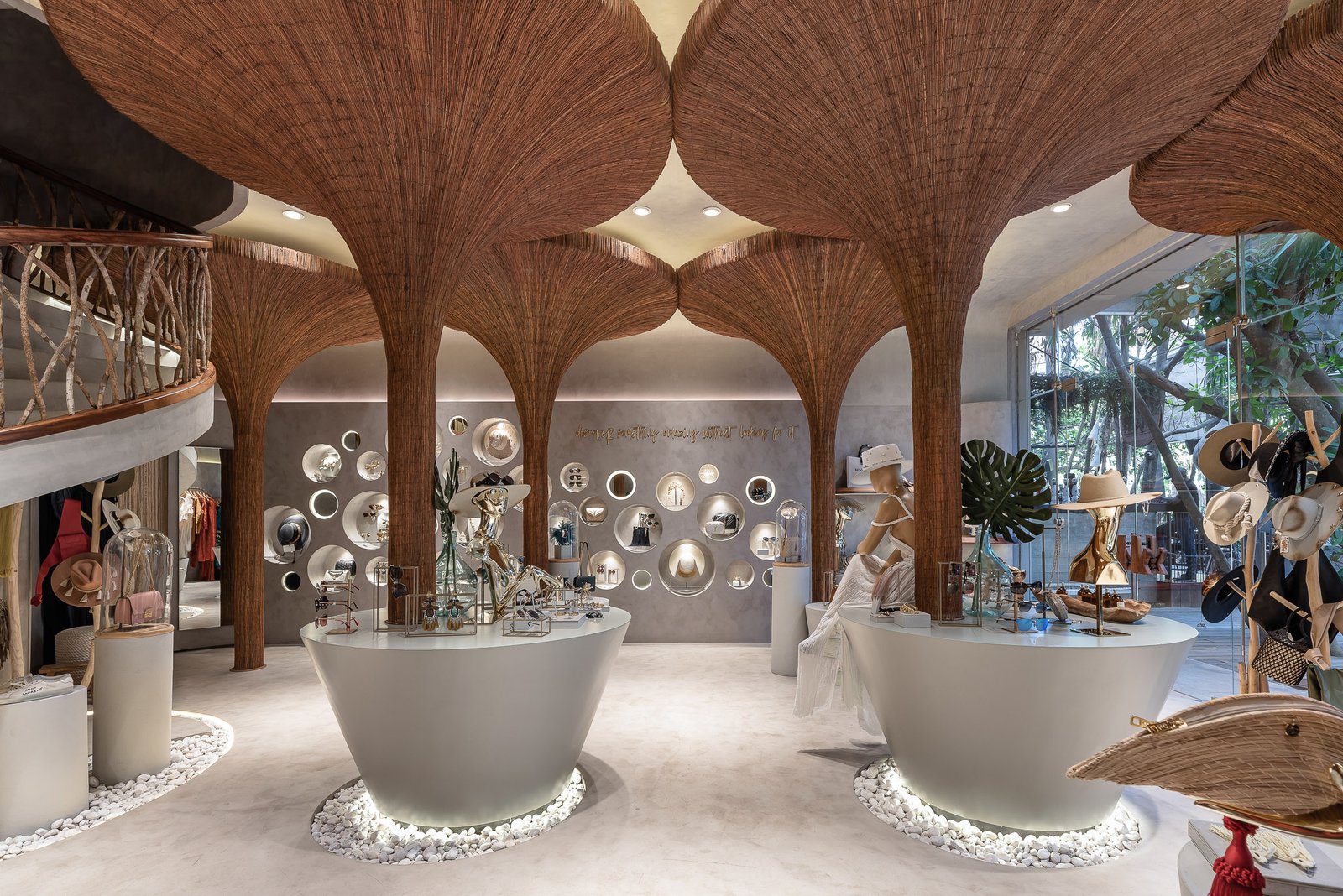

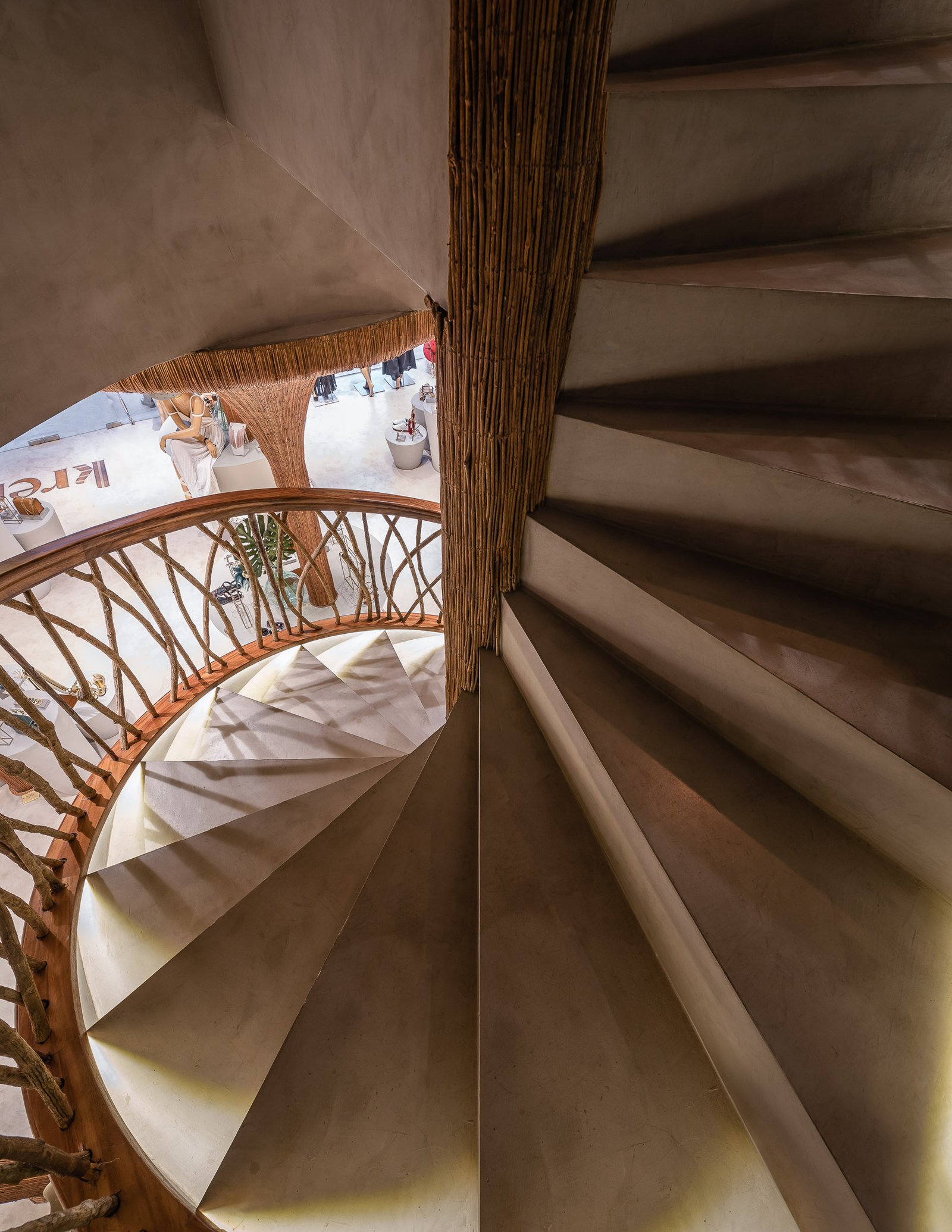

Uno de estos elementos tipo seta crece hasta atravesar la losa de entrepiso y se convierte en el apoyo de una escalera en espiral que sube hacia planta alta. Para acentuar el efecto de la escalera creciendo desde planta baja, se maneja el mismo acabado que el piso general y se genera un agujero en el piso donde se coloca iluminación indirecta y piedra natural. Este mismo gesto de sustracción del piso se repite en los elementos en forma de cono truncado que sirven para la exhibición de los productos.

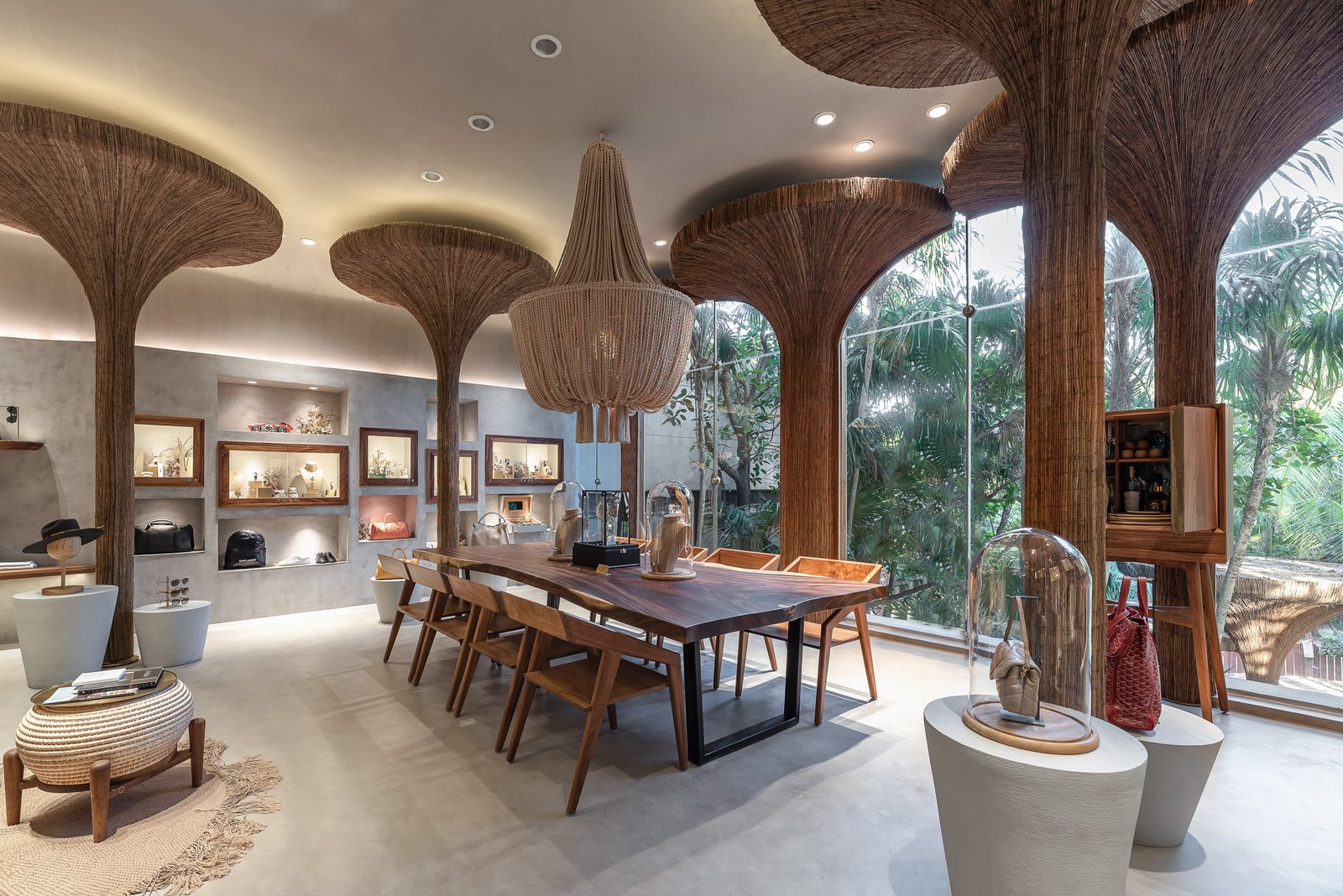

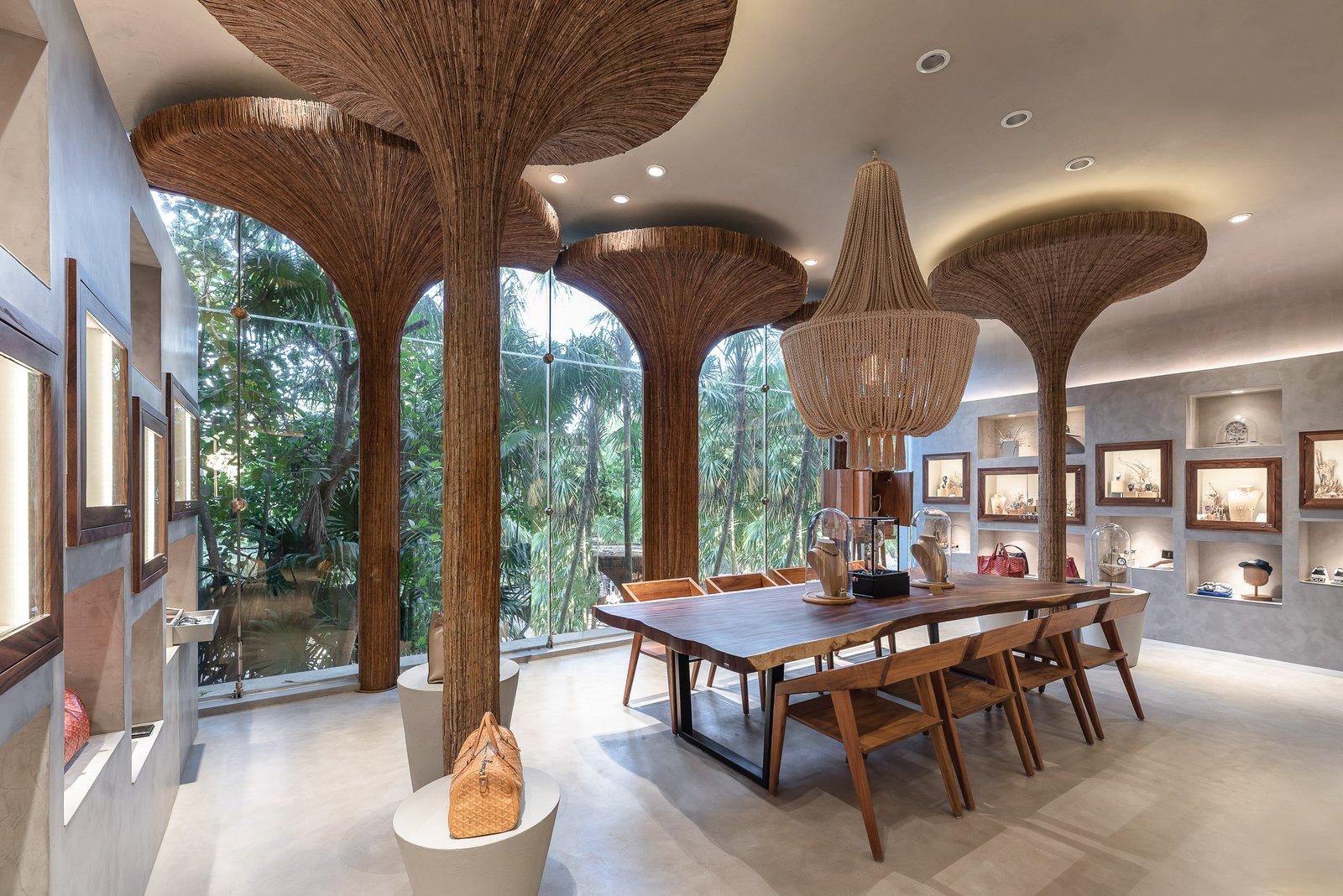

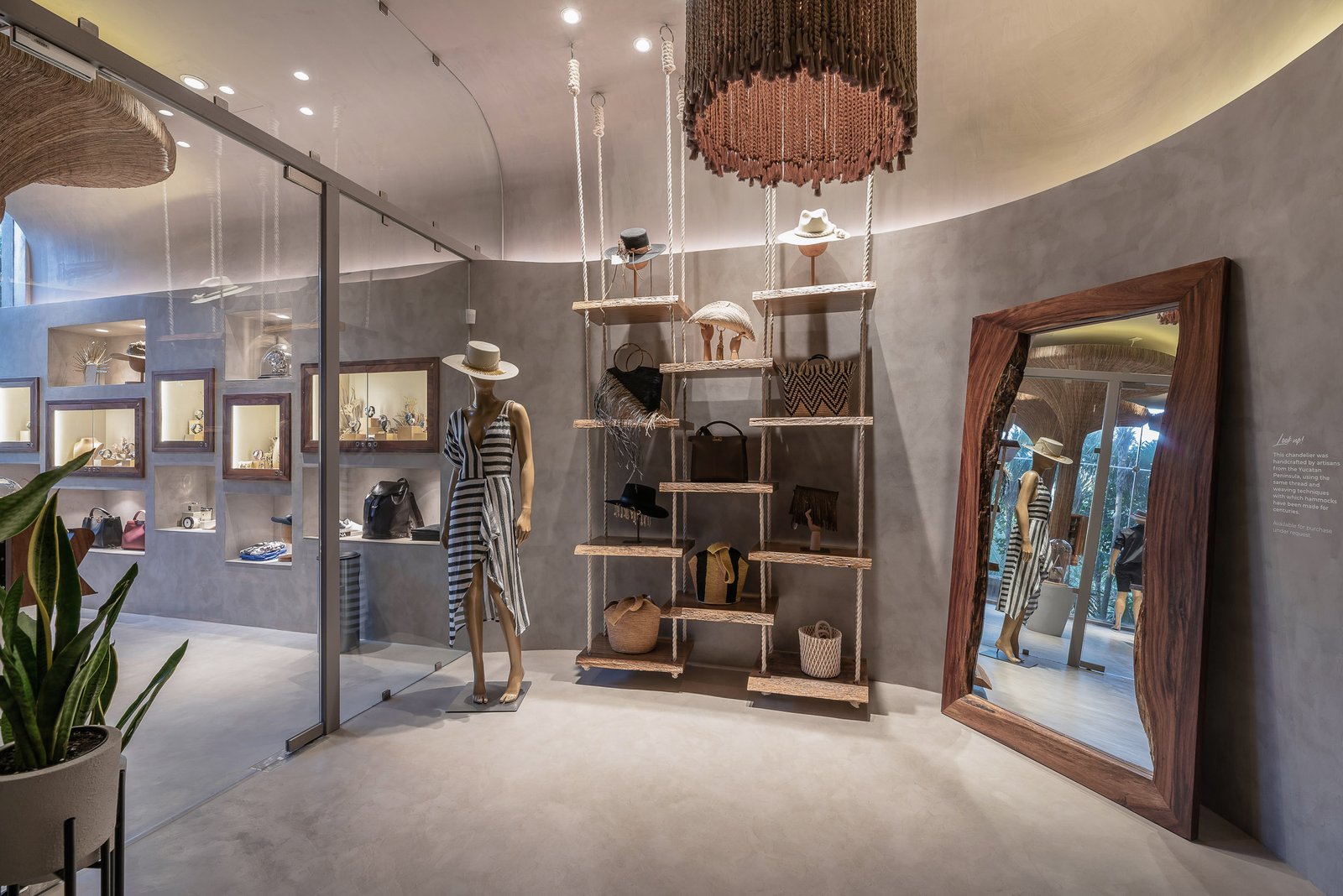

Para la paleta de materiales se buscó que fuera lo más sencilla posible, usando únicamente madera y cemento pulido, de tal forma que los elementos geométricos tipo seta destacaran y que los productos exhibidos tuvieran una jerarquía visual predominante. Para lo intangible como la luz, manejamos una directa para destacar la exhibición, otra para generar efectos de luz indirecta en plafones, paredes y piso. La luz artificial al interior va contando una historia que va ligada al recorrido, donde en la planta baja es intensa, en la transición entre planta baja y alta casi en penumbra y en planta alta la iluminación artificial es menor, dejando en este último espacio el protagonismo a la luz natural.

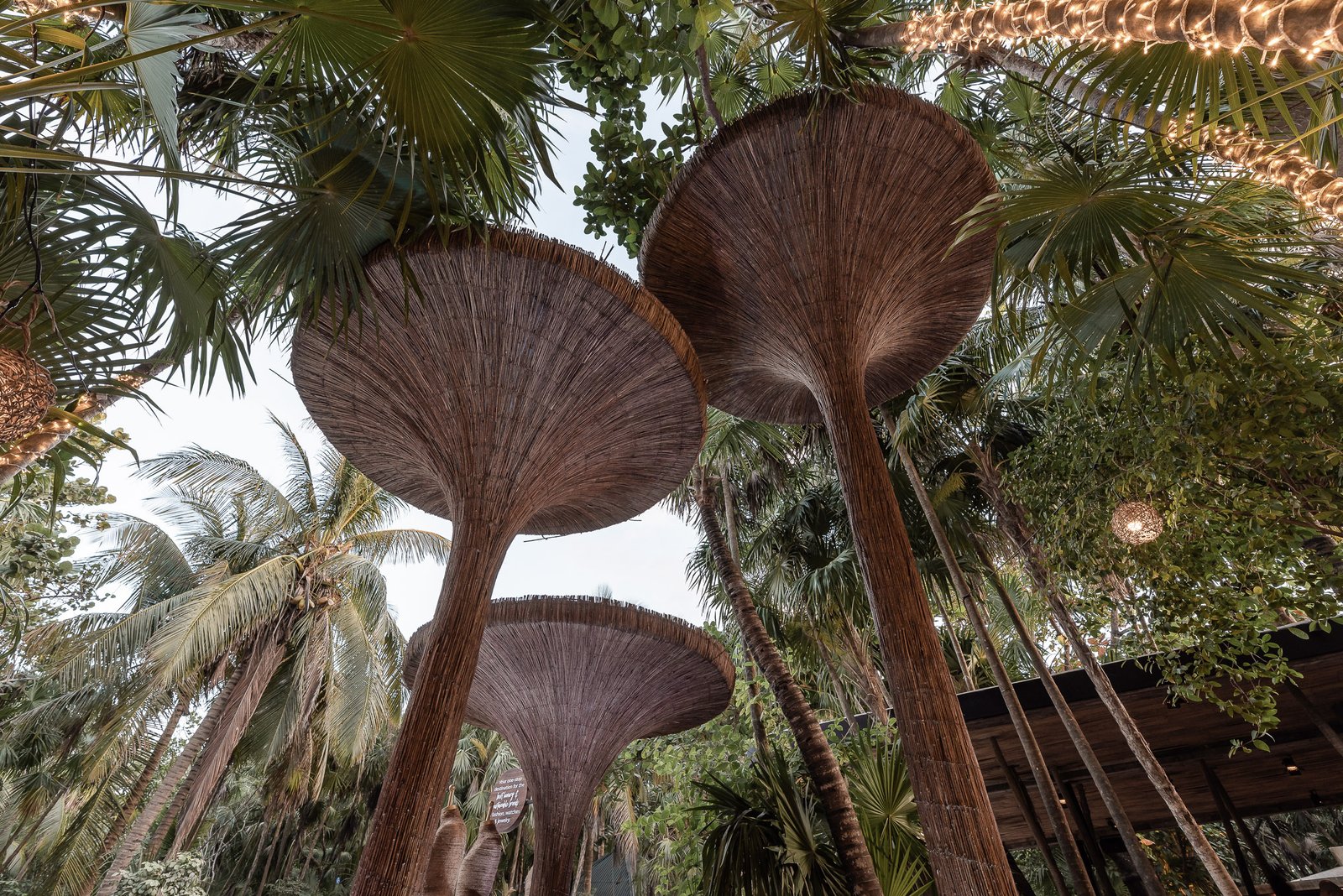

En el exterior de las áreas comunes del área comercial donde la tienda Krei Concept Store se inserta, buscamos difuminar los límites entre espacio interior y exterior y al mismo tiempo atraer al visitante hacia el interior. En este exterior se instalaron 3 estructuras de diferentes alturas y diámetros. Estas estructuras dialogan con la vegetación existente y formalmente con las estructuras tipo setas que el usuario encontrará al interior. Uno de estos elementos en forma de seta atraviesa visualmente el cristal de la fachada, rompiendo los límites entre exterior e interior.

Krei Concept Store is the first Mexican concept store to present a fresh curatorship of international luxury brands, along with one-of-a-kind Latin American designers and sustainable fashion.

The concept for this store located in Tulum was based on a simple, clear and direct plan grid, generated by circles of 2.50 meters in diameter that meet at their tangents. This grid follows the same distribution as a series of metallic structural columns that were calculated to support the upper floor slab.

Being in a context of exuberant vegetation such as Tulum, a geometric element was designed based on arches, which in its figurative image resembles a giant mushroom. These geometric structures in the shape of giant mushrooms are the common thread of the entire store and seek to evoke a kind of forest around which the exhibition is distributed on walls and loose furniture. These structures were manufactured by local artisans, taking advantage of natural materials from the area.

One of these mushroom-like elements grows until it crosses the mezzanine slab and becomes the support of a spiral staircase that goes up to the upper floor. To accentuate the effect of the staircase growing from the ground floor, the same finish as the general floor is used and a hole is generated in the floor where indirect lighting and pebble stone are placed. This same gesture of subtraction from the floor is repeated in the truncated cone-shaped elements that serve to display the products.

The material palette was kept as simple as possible, using only wood and polished cement, so that the mushroom-like geometric elements would stand out and the displayed products would have a predominant visual hierarchy. For light, one layer is direct, to highlight the exhibition, and another generates indirect light on ceilings, walls and floors. The artificial light inside tells a story linked to the route: intense on the ground floor, almost twilight in the transition between floors, and quieter on the upper floor, where natural light takes the lead.

Outside, in the common areas of the commercial complex where Krei Concept Store sits, the aim was to blur the boundary between interior and exterior and draw the visitor in. Three structures of different heights and diameters were installed. They speak with the existing vegetation and, formally, with the mushroom-like structures found inside. One of them visually pierces the glass of the façade, breaking the boundary between outside and inside.

Fotos
Krei Tulum · MKD Studio, Marco Kancab Díaz · fotografía 1

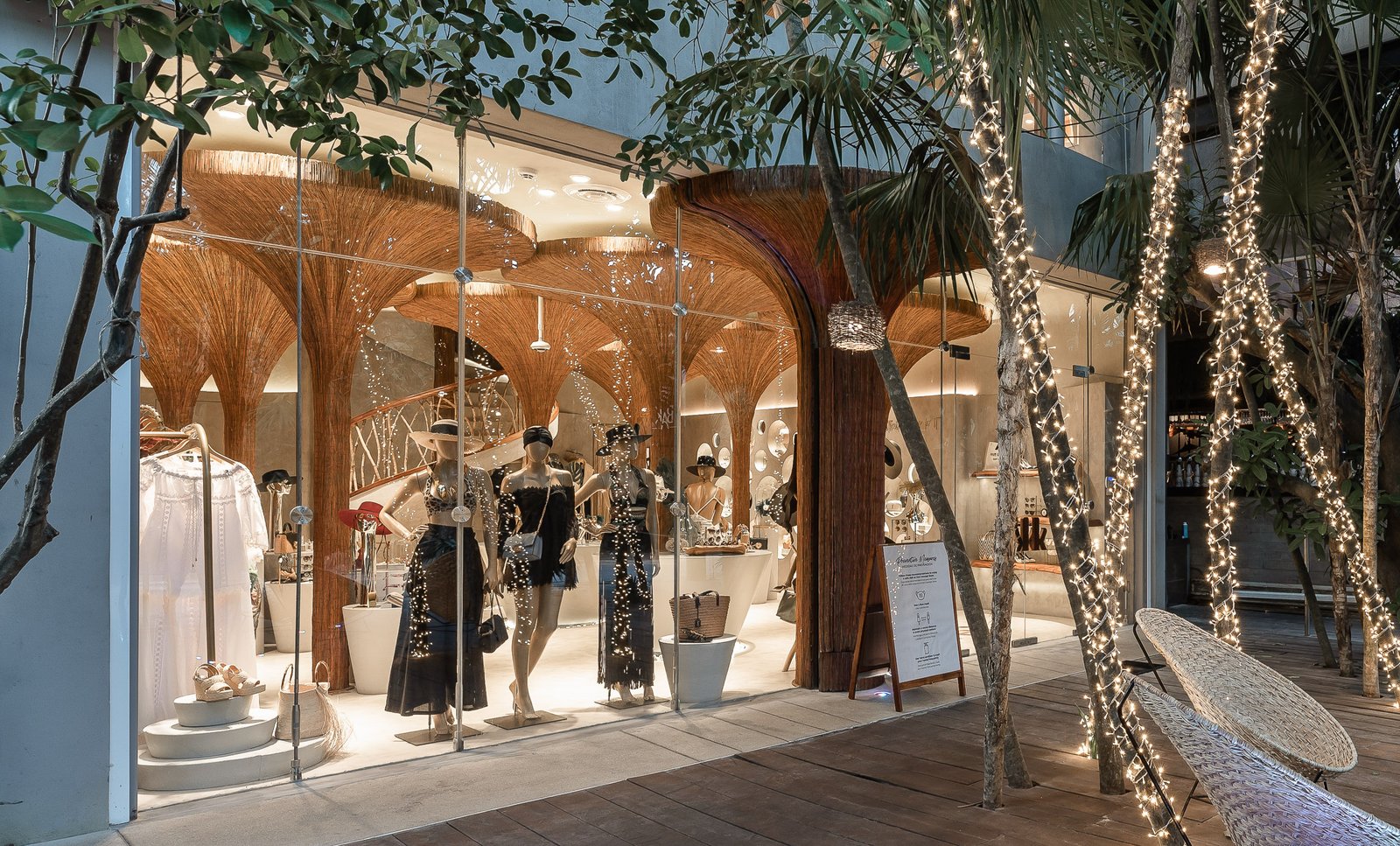

Krei Tulum · MKD Studio, Marco Kancab Díaz · fotografía 2
Krei Tulum · MKD Studio, Marco Kancab Díaz · fotografía 3
Krei Tulum · MKD Studio, Marco Kancab Díaz · fotografía 4
Krei Tulum · MKD Studio, Marco Kancab Díaz · fotografía 5
Krei Tulum · MKD Studio, Marco Kancab Díaz · fotografía 6

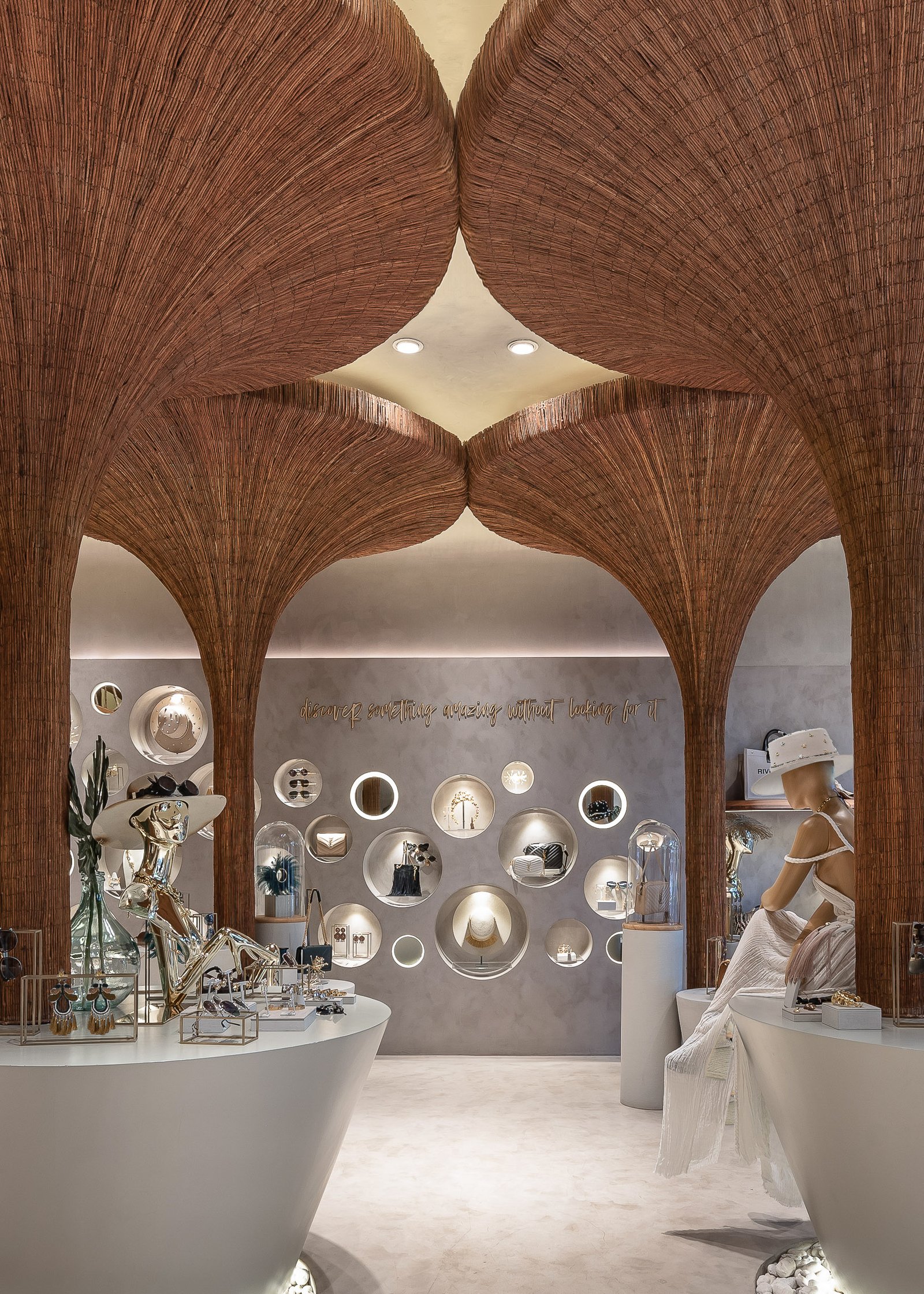

Krei Tulum · MKD Studio, Marco Kancab Díaz · fotografía 7
Krei Tulum · MKD Studio, Marco Kancab Díaz · fotografía 8
Krei Tulum · MKD Studio, Marco Kancab Díaz · fotografía 9
Krei Tulum · MKD Studio, Marco Kancab Díaz · fotografía 10
Krei Tulum · MKD Studio, Marco Kancab Díaz · fotografía 11
Krei Tulum · MKD Studio, Marco Kancab Díaz · fotografía 12
Krei Tulum · MKD Studio, Marco Kancab Díaz · fotografía 13

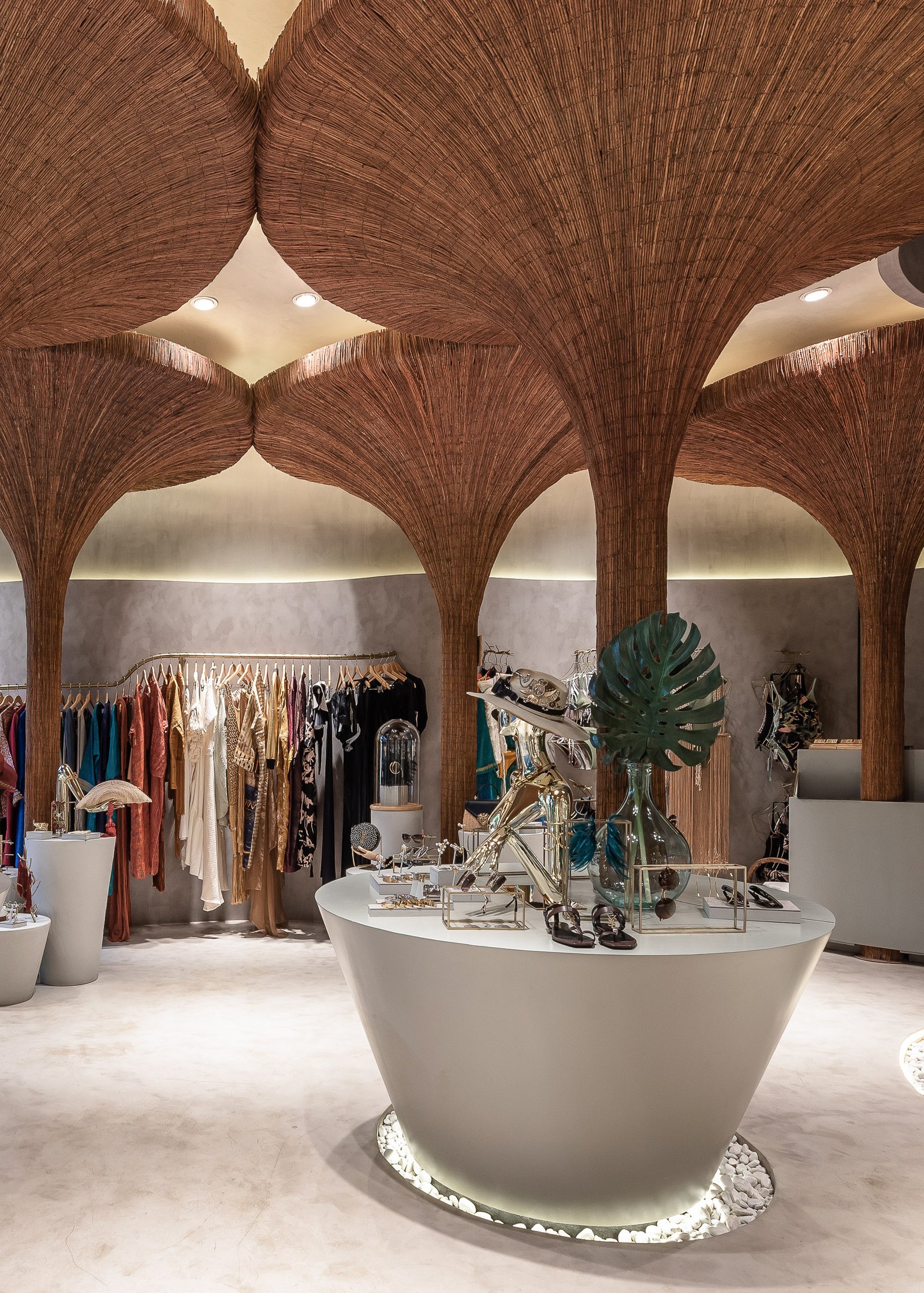

Krei Tulum · MKD Studio, Marco Kancab Díaz · fotografía 14
Planos

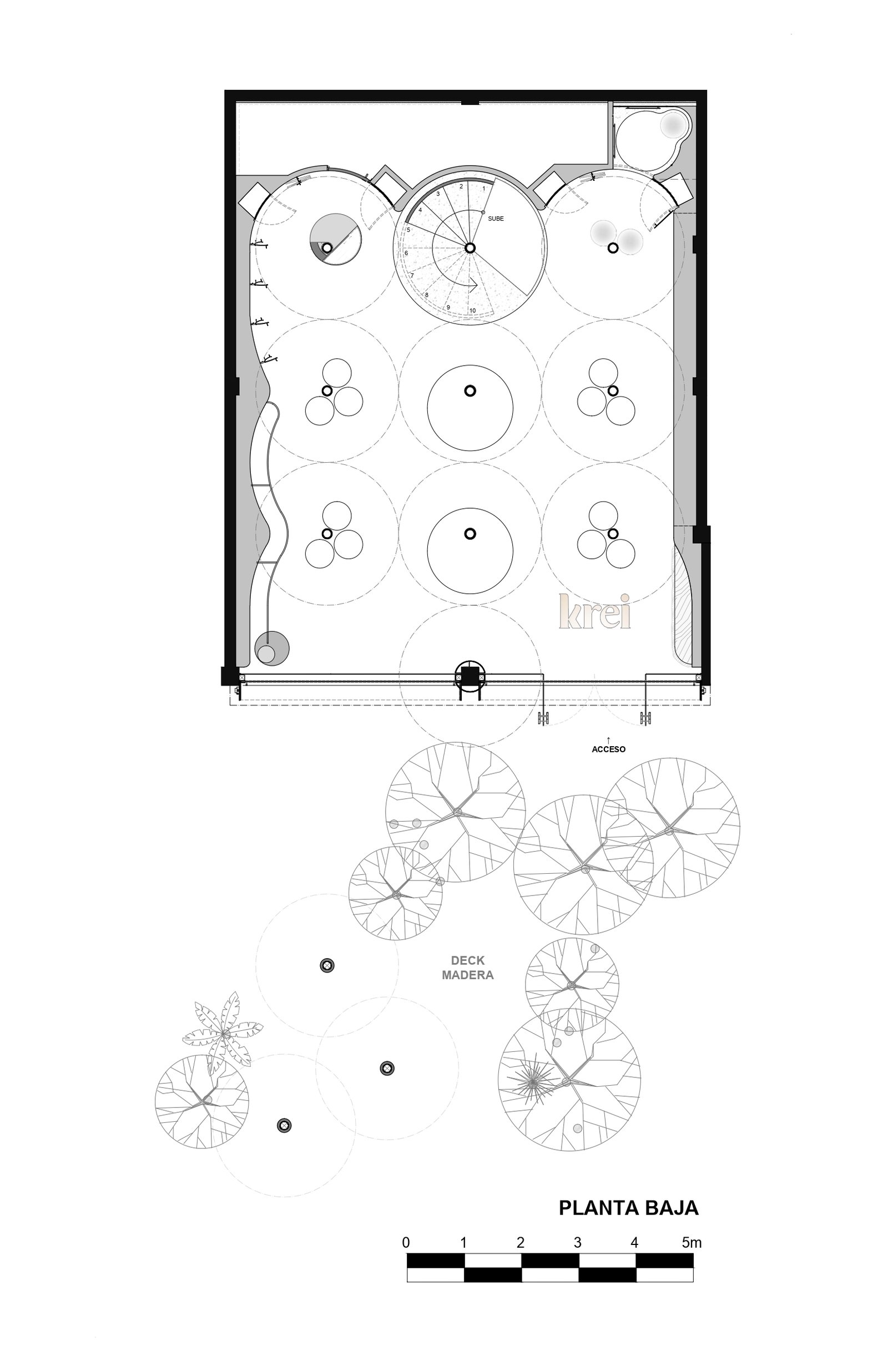

Krei Tulum · MKD Studio, Marco Kancab Díaz · plano 1

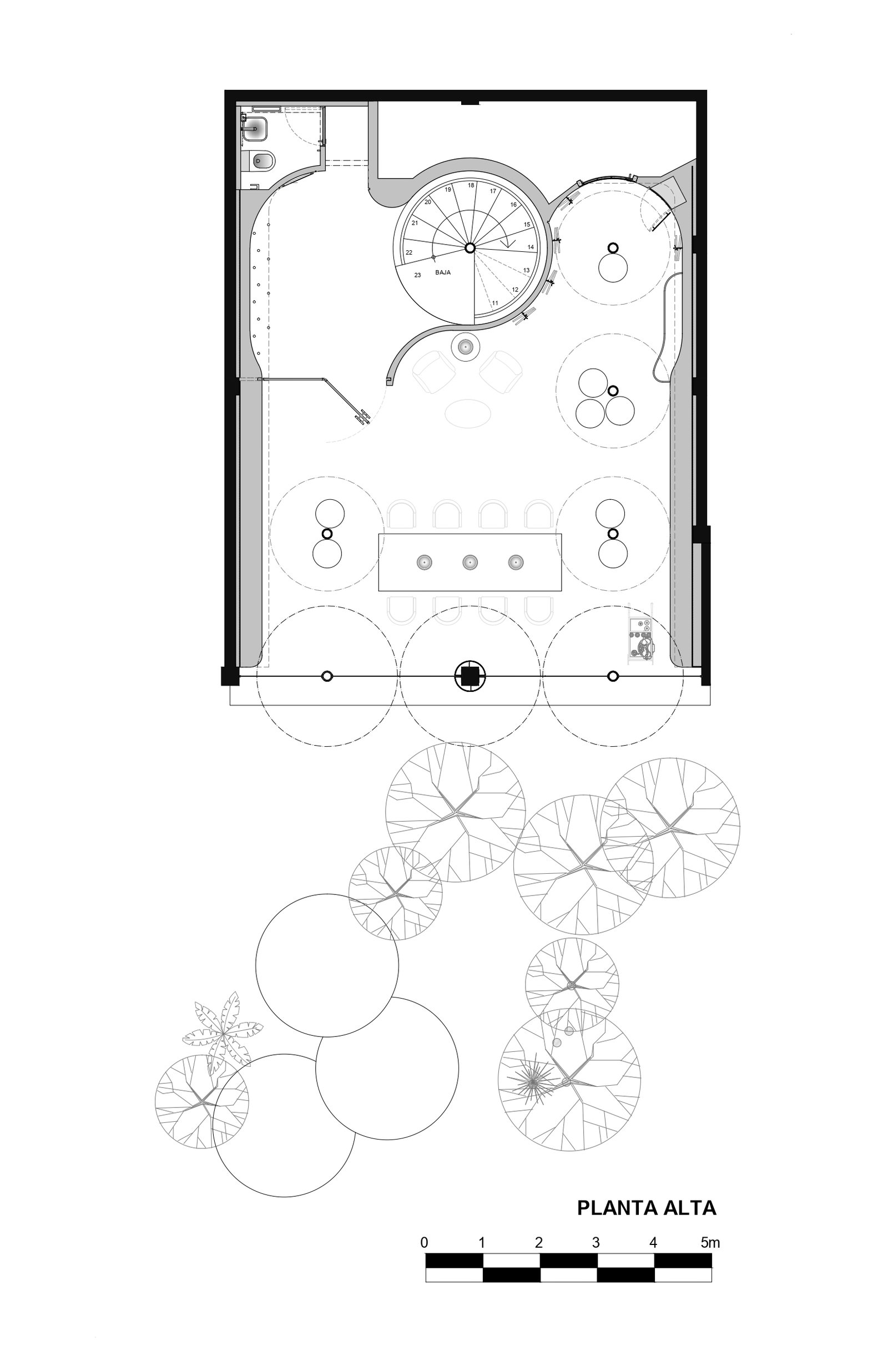

Krei Tulum · MKD Studio, Marco Kancab Díaz · plano 2
Krei Tulum · MKD Studio, Marco Kancab Díaz · plano 3
